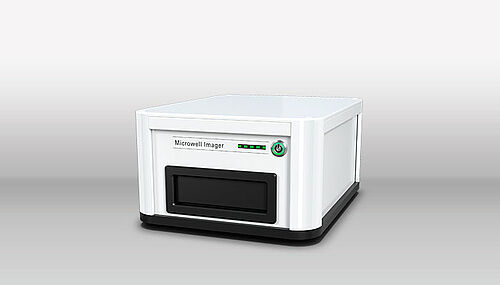

Microwell Imager​

EUROMicroblot image acquisition and evaluation

The Microwell Imager is a compact benchtop device for efficient acquisition of images of EUROMicroblots – miniaturised blot strips in microplate wells. The fast acquisition as well as the intelligent image pre-processing enable optimal integration into the automated processing of the EUROMicroblots. Due to the barcode scanner integrated in the instrument, reliable assignment of the  EUROMicroblot plates is ensured.

EUROLineScan, the proven software for automated evaluation of all EUROIMMUN blot strips, enables user-friendly operation of the Microwell Imager and convenient evaluation of the recorded blot bands.​ In the software, all data and results are clearly displayed, documented, securely archived and exported to the laboratory information system (LIS) via the middleware EUROLabOffice 4.0.

  • Reliable and fast evaluation of EUROMicroblots due to intelligent pre-processing​ of images
  • Compact footprint for easy integration into any laboratory ​
  • Intuitive operation using the proven EUROLineScan software from EUROIMMUN
  • Clear identification of the EUROMicroblot plates via the integrated barcode scanner​

Further information on the EUROMicroblots detection method can be found here.

Watch the video to see how the EUROMicroblot technology, including the Microwell Imager, has been successfully integrated into the routine workflow of the rheumatology practice "an der Hase".

  • Specifications

    Sample capacityup to 96 samples per plate
    Loadmicroplates in 96-well format
    Speedapprox. 96 seconds per microplate (1 s / image)*
    Camera sensor5 megapixel, monochrome 8 – 16 bit
    Imaging resolution< 15 μm per pixel
    Illuminationwhite-light LED
    Barcode scannerautomatic identification of barcode types Code 128
    Operation and data analysisvia EUROLineScan software from version 3.4.33
    Compatible operating systemMicrosoft Windows 10, 64 bit
    Connectionfrom USB 3.2 Gen 1; Type A
    Power supply100 – 240 V AC, 47 – 63 Hz, 0.6 – 1.5 A
    Dimensions / Weight310 mm x 400 mm x 191 mm (W x D x H) / 13,6 kg

    *Time until final evaluation in EUROLineScan may be longer due to variable exposure series


  • Files

  • Video

Product Management

Devices and Software

automation-pm@euroimmun.de

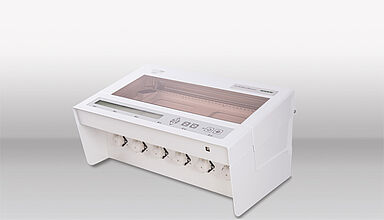

EUROBlotMaster 44

EUROBlotMaster 44

Product

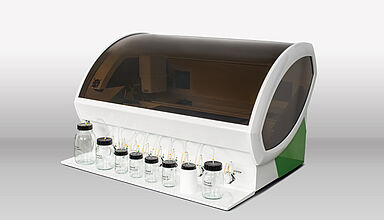

EUROBlotOne

EUROBlotOne

Product

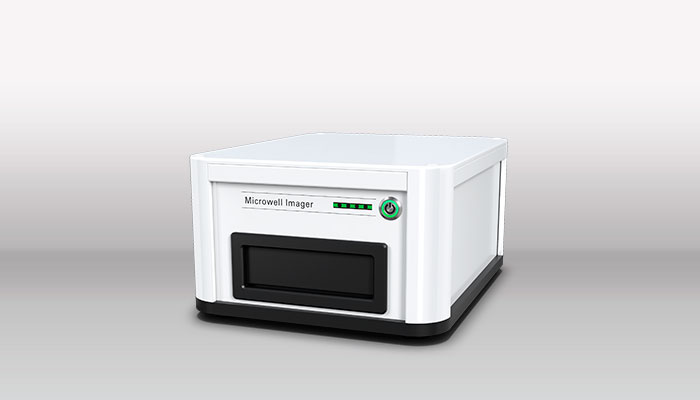

Microwell Imager
