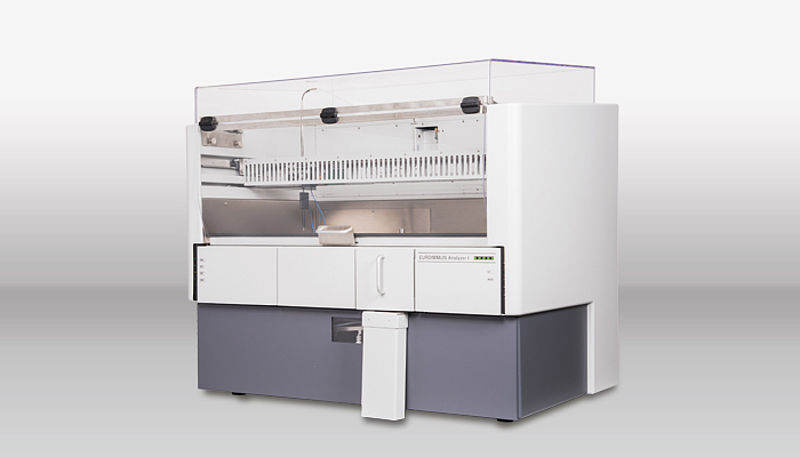

EUROIMMUN Analyzer I

Efficient ELISA automation for medium to high throughput

The EUROIMMUN Analyzer I is an open system for fully automated ELISA processing of up to 7 microplates and 180 patient samples in one run. The combination of EUROIMMUN ELISAs and EUROIMMUN Analyzer I enables a quick and simple, but also a secure routine operation, owing to the automatic recognition and allocation of reagents and the import of QC data via Data Matrix codes.

A further quality feature is the optionally available climate control unit, which ensures constant incubation conditions — regardless of fluctuating or excessively high laboratory temperatures. The EUROIMMUN Analyzer I is designed for medium to high sample volumes.

  • Fully automated ELISA processing for medium to high sample volume with minimal manual input
  • Open system with more than 800 validated EUROIMMUN parameters for autoimmune, infection and allergy diagnostics
  • High reliability and traceability due to automatic identification of barcodes of patient samples and ready-to-use reagents
  • Fast processing of up to 70 tests per hour and up to 7 plates and 180 samples per run
  • Convenient operation of the software including scanning of QC certificates using a 2D-hand barcode scanner

  • Specifications

    Sample typesPlasma, serum, CSF and stool
    Patient sample capacityup to 180 samples
    Plate capacityup to 7
    Parameter capacity per runup to 54
    Shakeable incubators4
    Throughputup to 70 tests per hour
    Sample tubesOuter diameter 10 – 16 mm, height up to 100 mm
    Traceabilityintegrated code scanner for identification of samples and reagents
    User interfaceMicrosoft ® Windows ® 10 Enterprise 2019 LTSC (64 Bit)
    Online connectionASTM interface, bi-directional
    Dimensions (WxDxH)1100 mm x 750 mm x 100 mm
    Weight130 kg
