EUROLabWorkstation IFA

Full automation of indirect immunofluorescence

The EUROLabWorkstation IFA heralds a new era in IFA automation. With this new development EUROIMMUN enables fully automated and standardised processing with highest capacity and highest efficiency for laboratories with high sample throughput. Up to 750 substrate fields and more than 700 samples can be analysed at high throughput with just one worklist. The system was developed by EUROIMMUN with a focus on data integrity and minimisation of manual processes. The established TITERPLANE Technique is complemented by the newly developed MERGITE! technology for washing of slides. This ensures brilliant fluorescence signals without background for the automatically mounted slides.

The software can be operated comfortably and intuitively via a touch screen and guides the user through the entire process. Complete traceability is guaranteed at all times, since the matrix codes of the slides and the barcodes of samples, reagents and accessories are automatically detected in each step of the process.

EUROLabWorkstation IFA
  • Fully automated processing of EUROIMMUN immunofluorescence tests from primary sample to mounted slide
  • Highest capacity of up to 750 substrate fields and more than 700 samples in a single worklist
  • Highest efficiency due to 10 washable pipetting needles and complementary accessories, as well as separation of pipetting and transport steps for flexible time management
  • Flexible workflows owing to freely selectable loading of the 45 tracks with samples, reagents and dilution plates
  • Brilliant fluorescence signals with the unique MERGITE! washing technology – each substrate field is washed without the risk of cross contamination using directed liquid flow in a standardised and gentle procedure

  • Features

    Workflow optimisation

    45 sample and reagent tracks for freely selectable loading

    Slides with 10 and 50 reaction fields

    Spatial separation of liquid handling and incubation (enables parallel flows)

    Fully automated washing and mouting of slides


    Precise and efficient pipetting

    10 coated stainless steel needles and precision pumps for high pipetting accuracy

    Optimised pipetting efficiency due to economical routes

    Secure pipetting procedure owing to liquid level detection

    Multishot function for the dispensing of reagents and samples


    Innovative washing technology

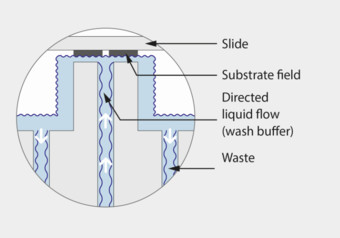

    Fully automated washing of IFA slides using directed and controlled liquid flow: MERGITE! washing technology

    Two integrated washing units for slides with 10 and 50 reaction fields

    Integrated washing unit for cleaning of reagent trays

    Automatic dispensing of mounting medium


    Convenient operation

    Touch-screen PC with intuitive graphic user interface

    Clear display of the time flow of the current run

    Software-supported maintenance with minimum time expenditure


    Overview of the process status

    Convenient system overview with detailed status information on run times, resources and slides

    ID-based memory function for dilution plates

    Exact time information on pending actions for improved planning efficiency


    Process security from A-Z

    Software access with different user accounts and rights

    Transparent traceability of all data entries and changes

    Gapless allocation of test results to the samples and reagents used


  • Specifications

    Sample typesserum, plasma and CSF
    Patient sample capacity> 700 samples
    Slide capacityup to 750 reaction fields (combination of slides with 10 and 50 reaction fields possible)
    Parameter capacity per runup to 75
    Slide washing unitone each for slides with 10 and 50 reaction fields
    Reagent tray washing unit5 dispensing needles and 11 aspiration needles
    Throughput> 200 tests per hour
    Sample tubesOuter diameter 10 – 16 mm, height up to 100 mm
    Pipetting volume5 μl – 1100 μl, 1 μl increments
    Traceabilityautomated registration of samples, reagents, dilution plates, slides, reagent trays and cover glass holders
    User interfaceTouchscreen PC with EUROLabWorkstation IFA software
    Microsoft ® Windows ® 10 LTSB
    Online connectionASTM via EUROLabOffice
    Dimensions (W x D x H)2920 mm x 811 mm x 859 mm
    Weight450 kg
