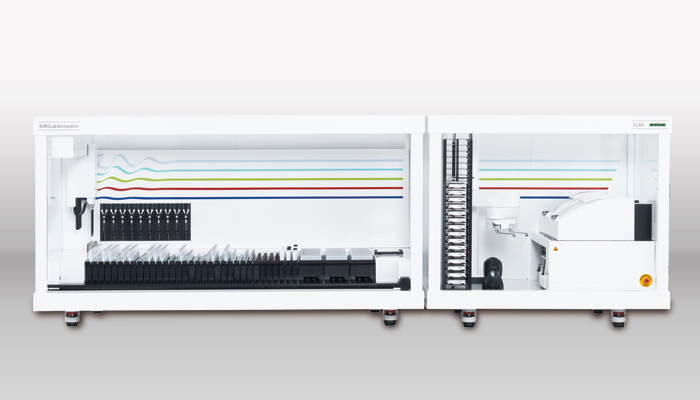

EUROLabWorkstation ELISA

Fully automated, user-friendly ELISA processing

The EUROLabWorkstation ELISA is a fully automated complete solution for processing ELISA kits in laboratories with high sample throughput. The system was developed by EUROIMMUN with a focus on efficiency and flexibility, in order to accommodate the ever increasing sample numbers and changing dynamics in the routine laboratory.

Ten washable needles, complementary accessories and a separate robotic arm for handling the microplates enable unparalleled sample throughput. State-of-the-art, intuitive software guides the user graphically through all work steps.

  • Fully automated processing of ELISA from primary sample to result
  • Highest capacity of up to 15 microplates and up to 700 samples in a single worklist
  • Highest throughput of up to 200 tests per hour due to fast pipetting of samples and reagents using 10 pipetting channels and efficient processing of microplates
  • Flexible open system for ELISA tests from different manufacturers
  • Minimal hands-on time and high integrity of results due to use of bar/matrix codes to identify samples, reagents and accessories
ELW ELISA

  • Features

    Optimize workflows and obtain maximum process efficiency

    • Mechanical separation of liquid handling and plate transport allows simultaneous operations
    • 10 needles provide unrivaled performance

    Customize system design for different workflow needs

    • Individual configuration of functionality and operating volume
    • 45 tracks for loading samples and reagents
    • Up to 8 temperature-controlled incubators

    Reduce hands-on time and increase process reliability

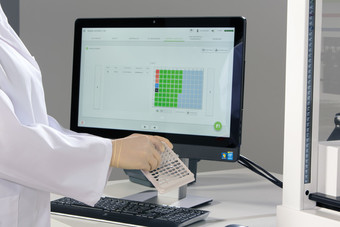

    • Intelligent software guides the operator through all steps
    • Intuitive graphical user interface for simple run management

    Overview process status and directly access all significant information

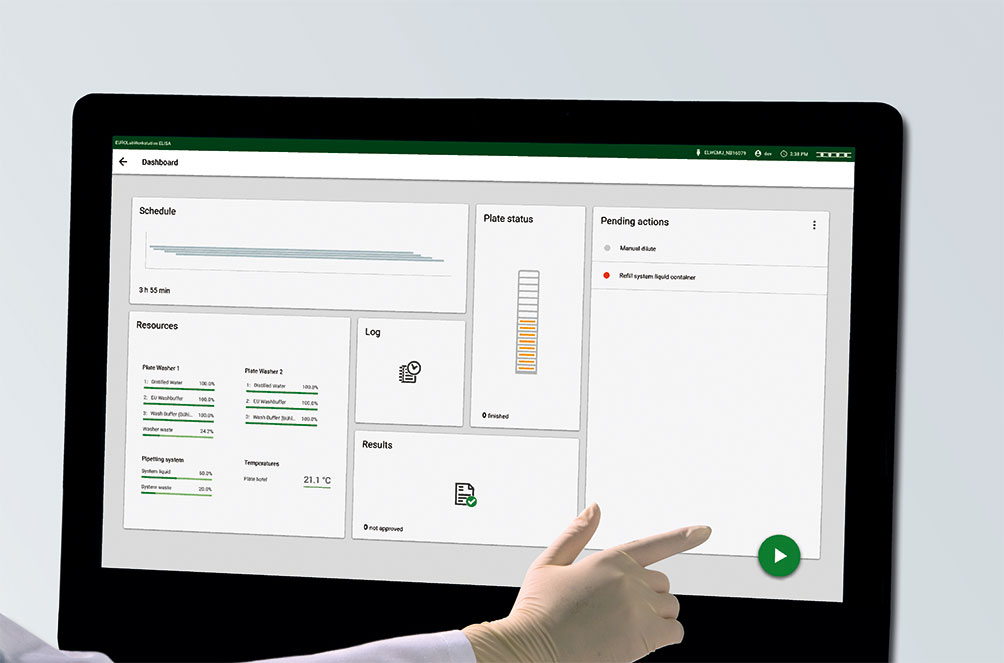

    • Detailed dashboard with resource overview, plate status and pending actions

    Inspect ELISA plates and evaluate results without delay

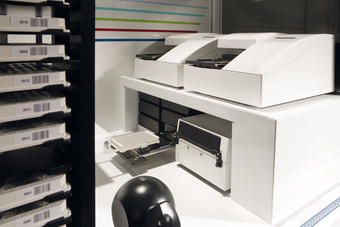

    • Continuous and immediate access to ELISA plates during active run
    • No need to interrupt running processes

    Obtain precise and correct results

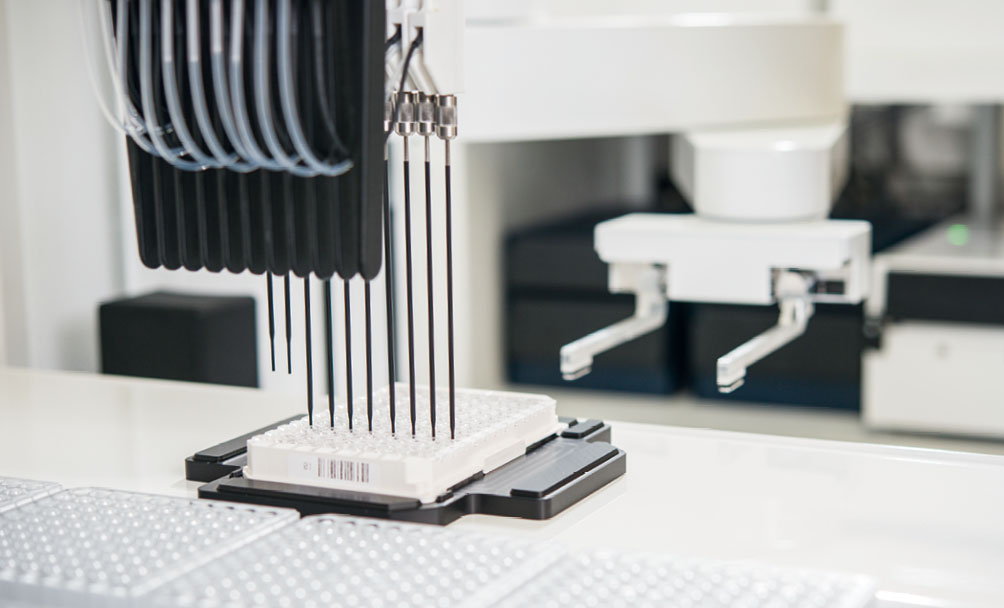

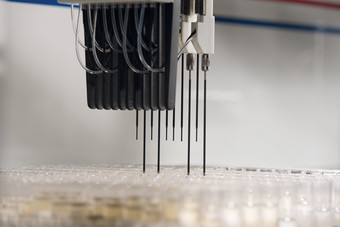

    • Coated stainless steel needles and precision pumps guarantee optimal pipetting precision
    • Liquid level detection allows for reliable pipetting processes

  • Specifications

    Sample typesPlasma, serum and CSF
    Patient sample capacity> 700 samples
    Plate capacity15
    Parameter capacity per runup to 180
    Incubatorsup to 8
    Shakeable incubatorsup to 4
    Throughput> 200 tests per hour
    Sample vesselsTubes (outer diameter 10-16 mm, height up to 100 mm) or in 96-well plates
    Pipetting volume5 μl – 1100 μl, 1 μl increments
    Traceability2 integrated code scanners for identification of samples, reagents, dilution plates and ELISA plates
    User interfaceTouchscreen PC with EUROLabWorkstation ELISA software
    Microsoft ® Windows ® 10 Enterprise 2019 LTSC (64 Bit)
    Online connectionASTM interface, bi-directional
    Dimensions (WxDxH)3270 mm x 811 mm x 859 mm
    Weight450 kg
